SKU: kfi-vplow-snowplow-EJD
BRAND: KFI
Effortlessly clear snow with the John Deere Complete Pro-V Snow Plow System by KFI - Made to handle any winter challenge.
Read More

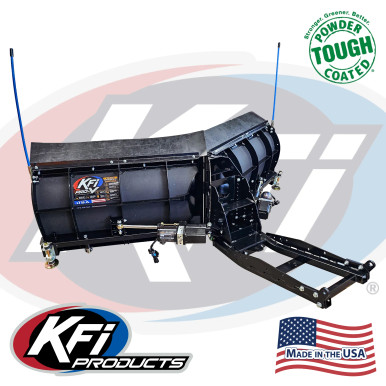

John Deere Complete Pro-V Snow Plow System by KFI Products
Clear your big driveway or move gravel, dirt, and more faster and easier than ever by adding this easy-to-install Snow Plow Kit! KFI uses only top-grade steel construction and quality-made components for year after year of reliable plowing.
Kit includes:
- (1) Drivers Side Blade
- (1) Passengers Side Blade
- (1) Center Pivot Bulkhead
- (1) UTV Pro 2.0 Push Tube
- (1) Vehicle Specific Mount (make sure to select your correct vehicle above)
Polaris Ranger Pro-V Snow Plow System Specifications:
- 80" Wide when straight
- 75" wide in v-shape
- 72" wide in scoop
- 21" vertical blade face height with an approximate 28" height with snow flap
- 4" integrated height adjustment (=1" to +3" in 1" increments)
- Steel frame design with replaceable poly face
- Dual curvature face for supreme snow moving
- Heavy duty 3" diameter, Grade-50 steel skid plates with bolt-on brackets
- Tripping wear bar
- Metal bead blasted, then powder coated black for supreme durability
- Weighs approximately 260 lbs (100-200 lbs than the competition)
- Made in the USA
- 2-Year Limited Warranty
- Complete installation instructions included
- All mounting hardware included
- Powdercoated for maximum durability
- Unlike all other Plow competitors, our components are metal bead blasted before they are powder coated for the best possible finish prep.
- 100% Made in the USA
Pro 2.0 UTV Push Tube (106300):
- Improved Manufacturing
- Easier Install for All Plow Accessories
- Added 2.5" Of Overall Length
- Works With All KFI Plows
- Front Mount Design with 30"+ of lift height
- Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five-degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
Model Specific Plow Mount:
- Front-Mount System
- Plate constructed from 3/16" Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
** Actual Plow Mount may look different than reference photo shown **
Leveling Kit Information:
- Stock machines will not require a leveling kit.
- Machines with High Arch A-Arms, Large Tires, Lift Kits or Tracks will most likely require a leveling kit. The optimal pin height is 10 7/8" from the ground to the center of the plow mount pin hole. The Pro-V Snow Plow System can be adjusted between -1" and +3" in 1" increments without a leveling kit. A leveling kit can be used to bring the plow system closer to its stock height if desired.
Important Notes:
- Winch will be required for use
- Optimal pin height is 10 7/8" from the ground of the plow mount pin hole
- Machines with tracks put on them require a Pro-V Track Extension (106280) to push the blade further forward. If Hydraulic Actuators are used, 2 Actuator Harness Extensions are required (ACT-EXT x2)
Option 1: Pro-V Snow Plow System with Hydraulic Actuators and Hand Remote Kit:
- Components Included
- 106180-CP
- 106180-DS
- 106180-PS
- 106180-APH
- Drivers side and passengers side wings
- Center pivot bulkhead
- UTV Pro 2.0 Push Tube
- (2x) Hydraulic Actuators (ACT-203)
- Actuator Harness Kit with Hand Remote
- Includes Standard Mounting Ears
- Includes Premium Plow Markers
- Includes Top Flap Kit
Option 2: Pro-V Snow Plow System with Hydraulic Actuators and Dash Rocker Switch Kit:
- Components Included
- 106180-CP
- 106180-DS
- 106180-PS
- 106180-AP
- Drivers side and passengers side wings
- Center pivot bulkhead
- UTV Pro 2.0 Push Tube
- (2x) Hydraulic Actuators (ACT-203)
- (2x) Actuator Harness Kits with Dash Rocker Switch
- Includes Standard Mounting Ears
- Includes Premium Plow Markers
- Includes Top Flap Kit
Option 3: Pro-V Snow Plow System with Manual Angle Adjustment:
- Components Included
- 106180-CP
- 106180-DS
- 106180-PS
- 106180-MP
- Drivers side and passengers side wings
- Center pivot bulkhead
- UTV Pro 2.0 Push Tube
- Manual Angle Kit (106530)
- Includes Standard Mounting Ears
- Includes Premium Plow Markers
- Includes Top Flap Kit
