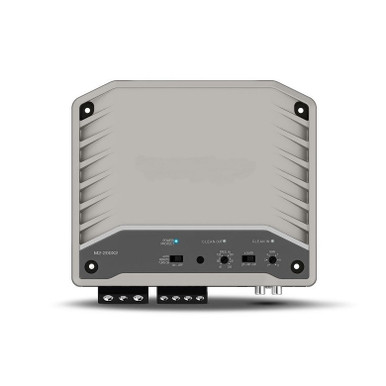

Designed to withstand the elements, the Element Ready™ amplifier is a 200 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.
The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It’s designed for those who want a reliable amplifier - with all the power and performance you’ve come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.
M2 200 Watt 2-Channel Element Ready Amplifier Features:
- Element Ready™ design protects against outdoor exposure
- Conformal coated circuit board protects against dust and water
- UV stable powder coated cast aluminum heatsink
- Zinc Nickel-plated Marine grade brass connection terminals
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Optimized using AudioGraph PowerCube measurement tool
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top Mounted Control Panel
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Short Circuit & Over Current Protection
- Variable Infrasonic Filter
- Integrated Power and Speaker Terminals
- Balanced Differential Inputs eliminates noise picked up by signal cables
- RCA pass-thru outputs
- Integration with OEM and Aftermarket Radios
- "Auto-Sense" turn-on with remote out (high level in)
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- CEA-2006 Compliant & CE Compliant
Specifications:
- Number of Channels - 2
- Total Power (Sum of Rated Power) - 200 Watts
- Rated Power (RMS Continuous Power) - 50 Watts x 2 @ 4Ω, 100 Watts x 2 @ 2Ω, 200 Watts x 1 @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®) - 60 Watts x 2 @ 4Ω, 107 Watts x 2 @ 2Ω, 215 Watts x 1 @ 4Ω Bridged/Mono
- Bridgeable - Yes
- Frequency Response - 20 Hz - 20 kHz
- Input Sensitivity - Low-Level: 150 mV - 4 V, High-Level: 450 mV - 12 V
- Circuit Topology Class - Class D
- Total Harmonic Distortion (THD+Noise) - 4Ω: <1.0%, 2Ω: <1.0%
- Signal Input - Low-Level: 2 RCA, High-Level: 4-Pin Molex
- Signal Output - Low-Level: 2 RCA (Pass-THru active with RCA or Hi-Level input)
- Tone Controls - No
- Crossover Controls - High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth, All-Pass: Yes
- Remote Controls - No
- Visual Indicators - Power/Protect, C.L.E.A.N. In, C.L.E.A.N. Out
- Power Wire Gauge - 4 AWG
- Power Input Connector - Compression Terminal Block
- Speaker Wire Gauge - 8 AWG
- Speaker Output Connector - Compression Terminal Block
- Cooling - Convection
- Operating Voltage - 9 - 16 VDC
- Recommended Fuse (not included) - 30 A
- Average Current Draw (13.8V Music)
- Max. Current Draw (13.8V Sinewave) - 18 A
